Idle Air Valve Note:

After installation of valve, adjust idle by turning the yellow knob counterclockwise, not by pulling out on it.

O-ring should be installed on the largest step closest to the retaining plate flange.

YFZ450R GT-10-301 Idle AIr Bypass Valve Control (IAC) Instructions


  1. Remove Stock IAC- Save Screws (3)

  2. Clean Area as needed, then remove the stock IAC valve/motor assembly.

  3. One race shop has told me they open the valve to the halfway point for the first start. This should around six to seven turns.

  4. Insert GT Manual IAC into recess in throttle body where the factory IAC unit was.

  5. Install the 3 screws (removed in step 1) into the small holes around the retaining plate and tighten to just past snug (a medium loctite is recommended).

  6. Reinstall anything removed to gain access.

  7. Start Quad and adjust the yellow knob by turning counter-clockwise till desired idle speed in acheived.


    NOTE - this may set your check engine light when used with a factory controller.












































































WE KEEP YOU ROLLIN'!





















































































































































































































































































































































































































YFZ450

YFZ450 IDLE AIR CONTROL

YFZ450 GRAB BAR

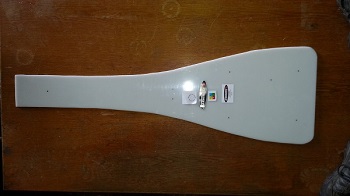

YFZ450 Poly Belly Skid

Now CNC cut with mounting holes

GT-YBS.........$30.00

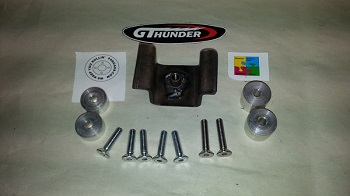

YFZ450 Poly Belly Skid Mounting Hardware kit

GT-YBSMK.....$12.00

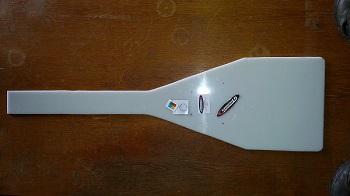

GT-YBSR/X......$30.00

Now CNC cut with 4 mid mounting holes drilled







Belly Skid & Rotor Guard Mounting Hardware

Hose Clamps

Vinyl coated Galvanized Steel strap clamps

for 1" od x 3/4" wide $1.50 #01-900

for 1-1/4"od x 1/2" wide $1.25 #01-901

Stainless Steel Strap with Rubber Cushion

for 1-1/4" od x 1/2" wide $2.25 #01-911

Hose Clamps



Flat Head Bolts

Black Oxide Flat Head Bolts



Zinc Plated Flat Head Bolts

Stainless Steel M6x30.#01-112.$1.00

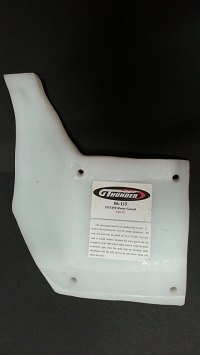

06 - 08 YFZ450 Poly Rotor Guard

06-115........ $50.00







YFZ450R Poly Rotor Guard

09-115........... $50.00







GT Thunder Kickups.......fit most stock Yamaha foot pegs, adds width, grip and end kick up.....anti-slip, comfortable to stand on, may require spacers and bolts (not included)

10-202.......$29.95







YFZ450 04-08 Foot pegs

06-201........... $95.00











YFZ450 09-up Footpegs

09-201........ $95.00









YFZ450R/X Idle Air Adjuster.....10-301..... $75.00

Used to replace stock IAC/ISC motor if it fails or allow idle adjustments after performance modifications or installation of a Rekluse clutch

Replacement O-ring...........10-301-O.........$1.00

Idle Adjuster Installation Video ...... click here

See Installation Procedure at left.





04 05 YFZ450 Steel Skid Plate

03-135.......$60.00

Early YFZ swing arms had tabs that hang down for mounting.







06 up YFZ450 Steel Skid Plate

06-135........$60.00

On 06 and later swing arms, the mounting bolts go up through the skid plate into the swing arm. This plate has slotted holes and fits both carb and efi versions.





06 up YFZ450 Steel Rotor Guard

06-135S........$60.00

On 06 and later swing arms, the mounting bolts go up through the rotor guard into the swing arm. This plate has slotted holes and fits both carb and efi versions. Is open on the left side for use with disc type sprocket guards.







GT A-Arm PolyUrethane Bushing set 12pcs

#06-131.........$44.95



check back often

Bushing Reamer

Use reamer after bushing install to size bore for pivot sleeve slip fit

#05-007......$85.00

Flat Head Bolts

Black Oxide Flat Head Bolts



Zinc Plated Flat Head Bolts



Stainless Steel M6x30.#01-112.$1.00
